Bowser - HO - Steam Loco Kits
PRR B-6 Switcher 0-6-0    Now available to order!



This is a New Kit Never Before Offered by Bowser

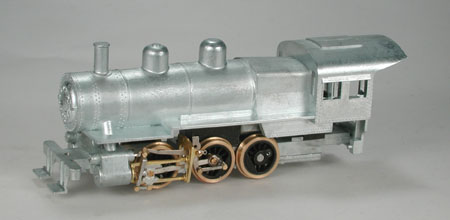

This new model is offered only as a deluxe kit equipped with a can motor with gear box drive, 56" Drivers, blackened valve gear, main rods, and side rods.  All brass parts are included.  Die cast boiler, tender, underframe, cylinder drivers, coverplate.

The Deluxe Kit Includes:  The locomotive and tender complete kit, a painted engineer and fireman, and all of the "Super Detail Kit" parts. In addition, the boiler & tender body have been pre-drilled to enable installation of all the "Super Detail Kit" parts and the valve gear has been assembled.  Please note that some holes may need to reamed to fit the posts on some parts.

Part #DescriptionPrice
1-528   B-6 0-6-0, Deluxe Kit * n.a.

Kit Components and Replacement Parts:  The following parts are listed in order to identify parts in your kit or to replace parts that have been lost, damaged or simply worn out.  This is not a complete list of all of the individual parts available for this model - please call Bowser with your specific requirements if you cannot find the parts you need.  You may also use our on-line catalog to find parts by description.  Please note that part numbers with a price of "Call Us" may be part of an assembly and may not be available as a separate purchase item.

Part #DescriptionPrice
1-90518   B-6 Boiler Pipe (included in B-6 Kit) * n.a.
1-90519   1 Hole Piping Bracket (included in B-6 Kit) * n.a.
1-90520   B-6 Steam Dome Pipe (included in B-6 Kit) * n.a.
1-90521   B-6 Ash Pan Left (included in B-6 Kit) * n.a.
1-90522   B-6 Ash Pan Right (included in B-6 Kit) * n.a.
1-90523   B-6 Reverse Armlift (included in B-6 Kit) * n.a.
1-90524   B-6 Valve Gear Hanger Left (included in B-6 Kit) * n.a.
1-90525   B-6 Valve Gear Hanger Right (included in B-6 Kit) * n.a.
1-90527   Coal Extension Back End (included in B-6 Kit) * n.a.
1-90528   Coal Extension Left (included in B-6 Kit) * n.a.
1-90529   Coal Extension Right (included in B-6 Kit) * n.a.
1-100771   B-6 Side Rod Kit (included in B-6 Kit) * n.a.
1-100773   B-6 Mics Kit (included in B-6 Kit) * n.a.
1-100774   B-6 Parts Bag (included in B-6 Kit) * n.a.
1-100775   B-6 Valve Gear Kit (included in B-6 Kit) * n.a.
1-100776   B-6 Detail Parts (included in B-6 Kit) * n.a.
1-100777   B-6 Pilot Detail Parts (included in B-6 Kit) * n.a.
1-100779   B-6 Tender Detail Parts (included in B-6 Kit) * n.a.
1-100780   B-6 Instruction (included in B-6 Kit) * n.a.
1-90526   Crosshead A-5 B-6 (included in A-5, B-6 Kit) * n.a.


  Prototype
  Specifications
  Model
  Specifications
     Length with Tender"
  Height"
  Weight
  Minimum Radius 18"
  Recommended Radius 18"
  Power Can motor
  Drivers 56"

click on photo to enlarge
click on photo to enlarge
click on photo to enlarge
click on photo to enlarge
click on photo to enlarge
click on photo to enlarge
click on photo to enlarge
click on photo to enlarge
click on photo to enlarge

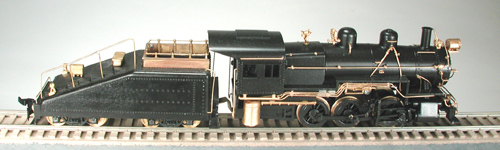

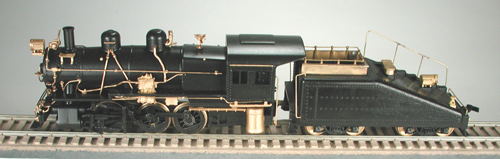

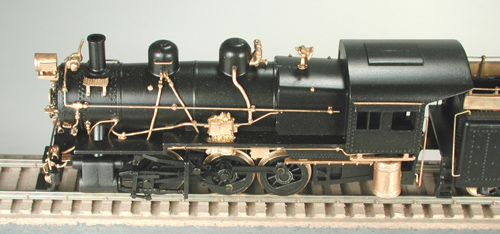

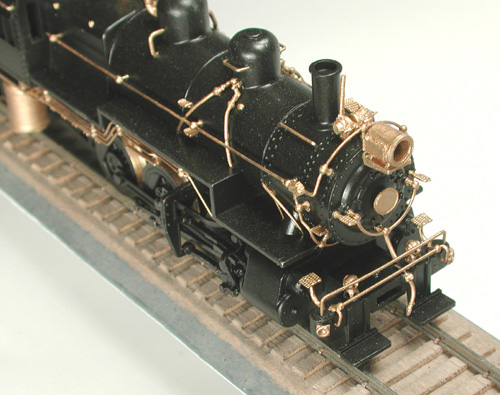

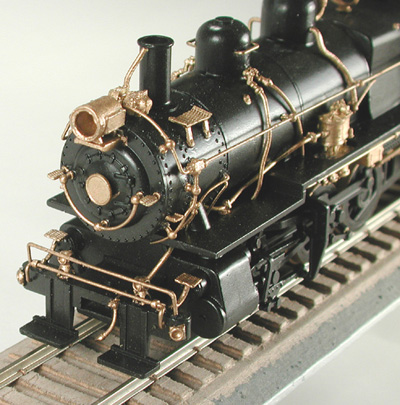

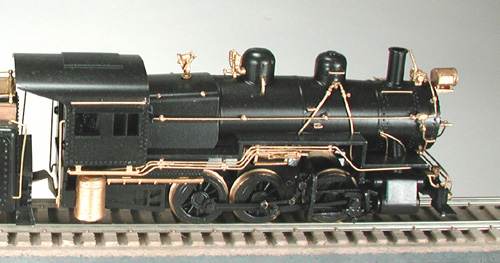

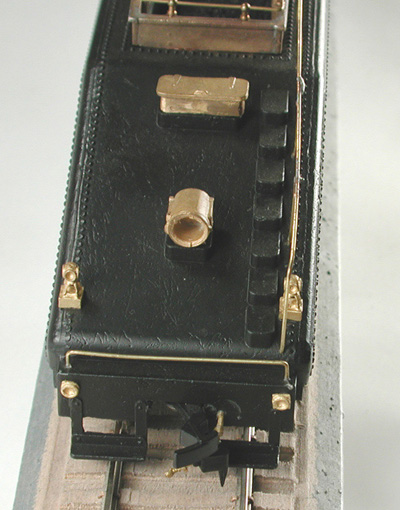

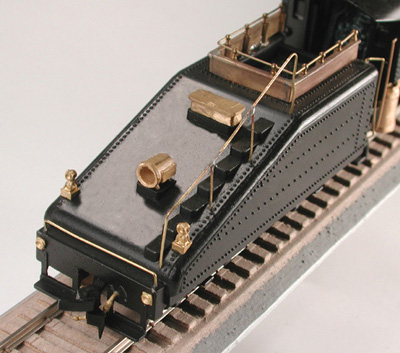

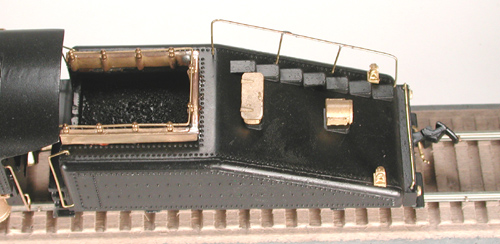

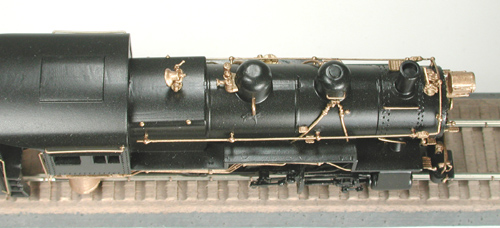

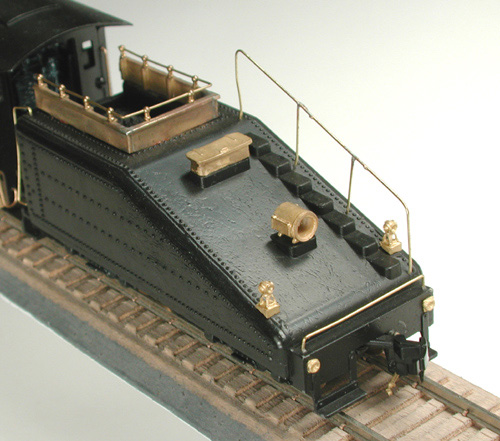

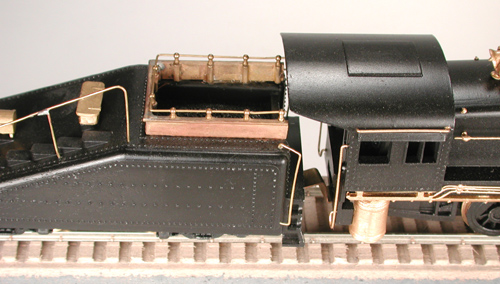

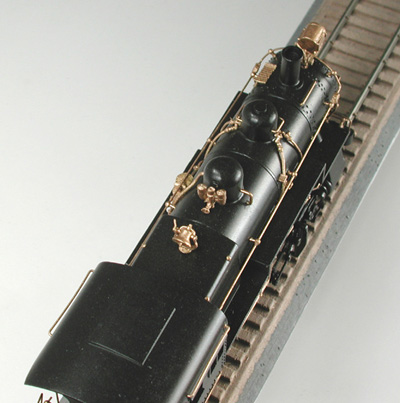

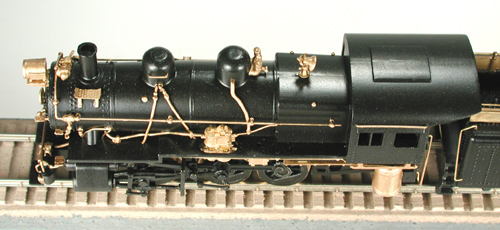

Photos of Model with Super Detail Parts in Brass [unpainted]
Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6
Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 12
Photo 13 Photo 14 Photo 15
