Bowser - HO - Steam Loco Kits
USRA Light Pacific 4-6-2



History:  If the weight on a single axle is too great for the track, the rail can be damaged. It is for this very reason that the USRA locomotives were designed in light and heavy versions.

The light pacific locomotives had only 54,000 pound load per axle, which allowed the light engines to run on most main lines. Light Pacifics had 25" by 28" cylinders, 73" drivers, and 200 pounds of pressure. The original models weighed 277,000 pounds and could carry 40,700 pounds. It cost $58,146.

Only 81 light engines were built and delivered in 1919. The B&O (45 locos), ACL (75 locos), GTW M&O (GM&O) and L&N were the three railroads that received these engines.

The Kit Includes:  Over 60 brass "Super Detail" parts.  In addition, the boiler & tender body have been pre-drilled to enable installation of all of the "Super Detail" parts.  No soldering is required.  All supderdetail parts may be glued to the zinc casting using your favorite glue (ACC, Goo, Ambroid, 2 part epoxy, etc.).

Part #DescriptionPrice
1-100250  USRA Light Pacific with 32 Foot Tender & Super Detail Kit * n.a.

Kit Components and Replacement Parts:  The following parts are listed in order to identify parts in your kit or to replace parts that have been lost, damaged or simply worn out.  This is not a complete list of all of the individual parts available for this model - please call Bowser with your specific requirements if you cannot find the parts you need.  You may also use our on-line catalog to find parts by description.  Please note that part numbers with a price of "Call Us" may be part of an assembly and may not be available as a separate purchase item.
Part #DescriptionPrice

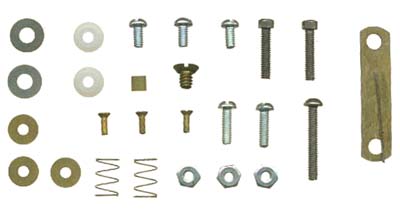

1-100253  Miscellaneous Kit (included in Kit) * n.a.

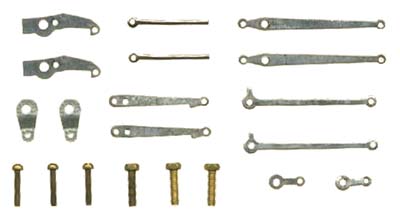

1-100255  Valve Gear Kit (included in Kit) * n.a.

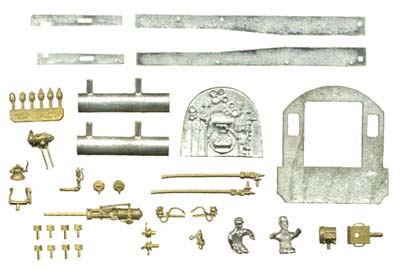

1-100256  Detail Parts Kit (included in Kit) * n.a.

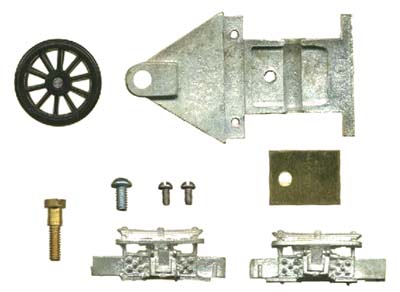

1-100257  Trailing Truck Kit (included in Kit) * n.a.

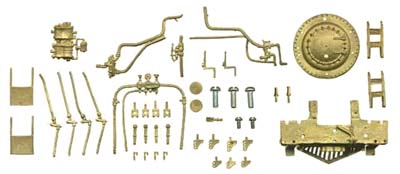

1-100258  Detail Parts Kit #2 (included in Kit) * n.a.

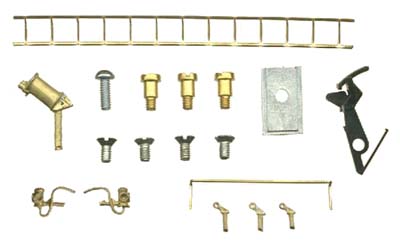

1-100259  Tender Parts Kit (included in Kit) * n.a.
1-100269   USRA Light Pacific Mechanism (included in Kit) * n.a.
1-100270   Assembly Instructions (included in Kit) * n.a.


  Prototype
  Specifications
  Model
  Specifications
  Builder ALCO & Baldwin
  Tractive Force 97,350 pounds
  Drivers 73"
  Weight per axle 54,000 pounds
  Tractive force 40,700 pounds
  Total Engine Weight 277,000 pounds
  Total Engine Wheel Base 34 11"'
  Steam Pressure 200pounds
  Height from rail to top of Smokestack 15'
  Drivers 72" Spoke
  Gear Ratio 31-1
  Power Bowser DC-71 motor
  Total Weight 1 lb. 12 oz.
  Total overall length 11"
  Height 2 1/8"

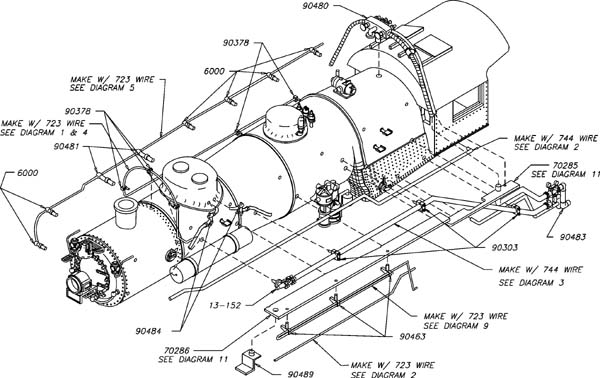

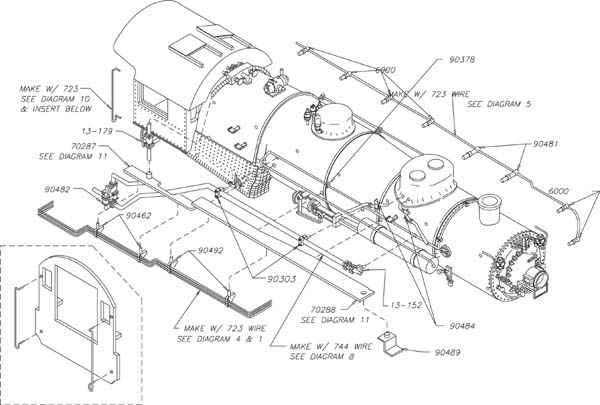

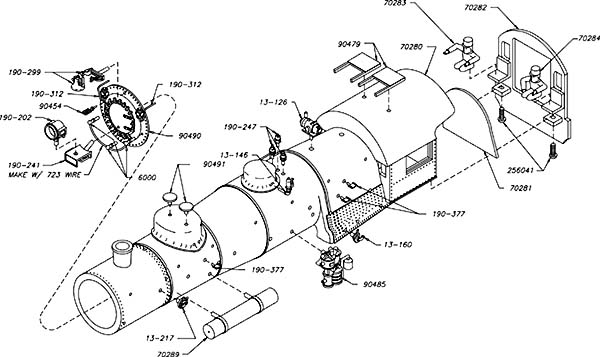

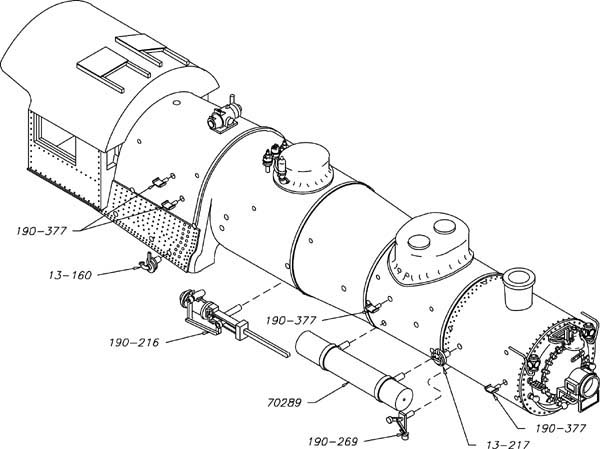

Assembly- Exploded View Drawings
(click on any image to enlarge)

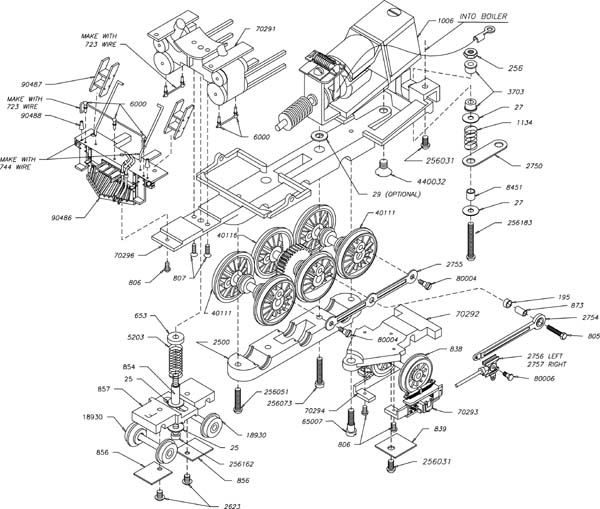

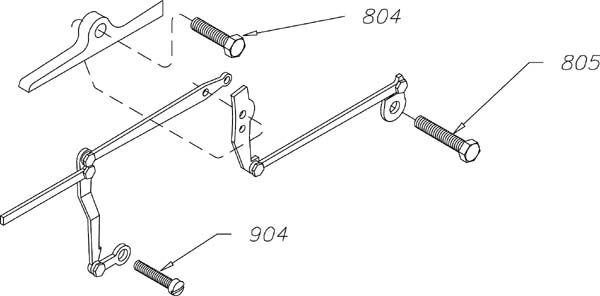

Boiler & Mechanism Valve Gear Boiler View #1
Boiler View #2 Boiler View #3 Boiler View #4

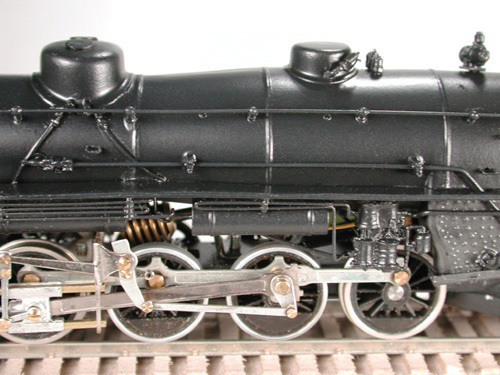

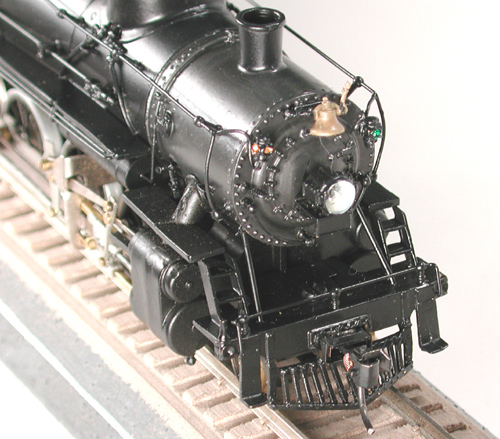

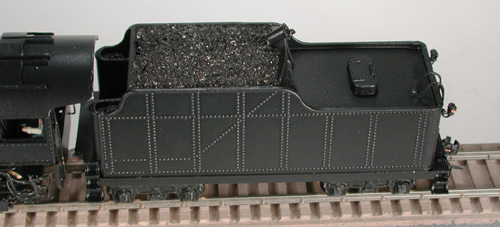

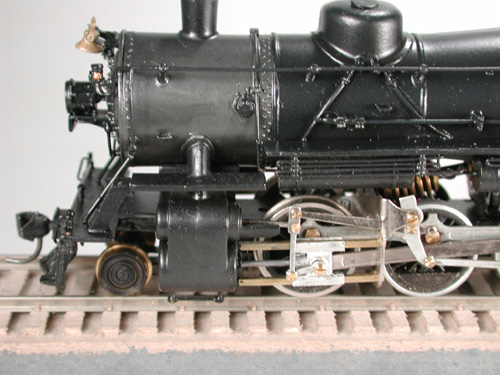

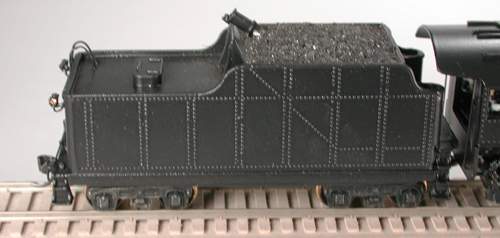

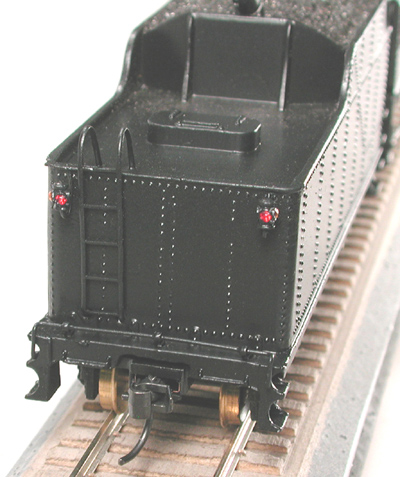

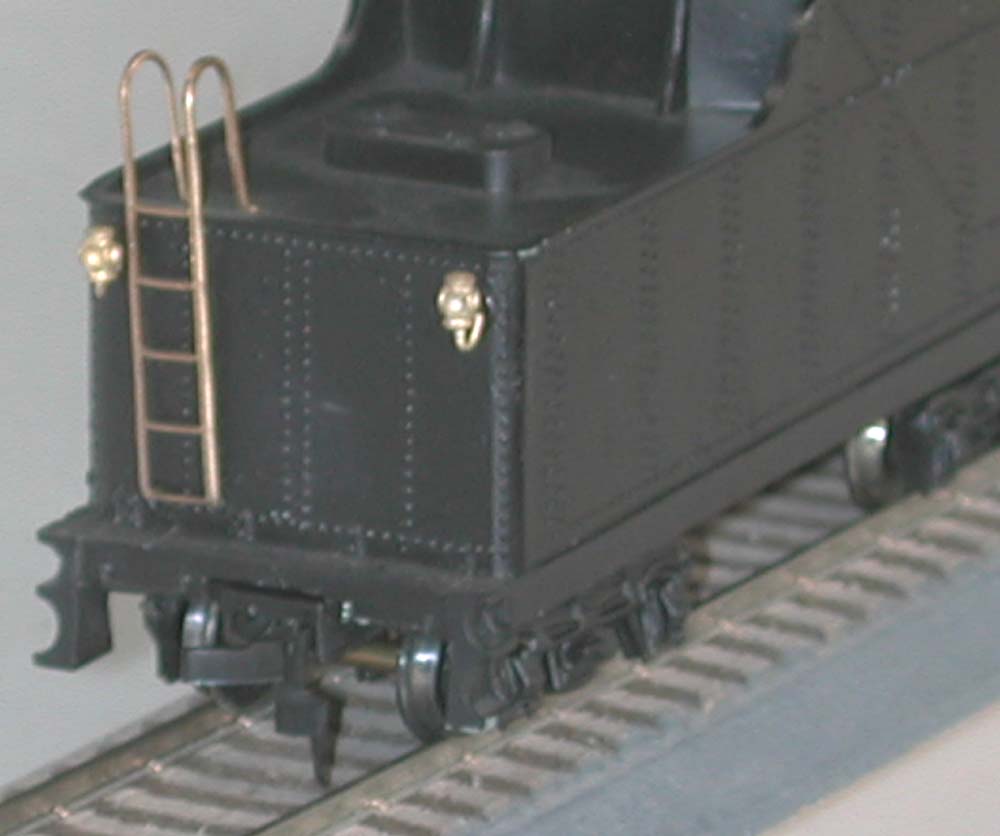

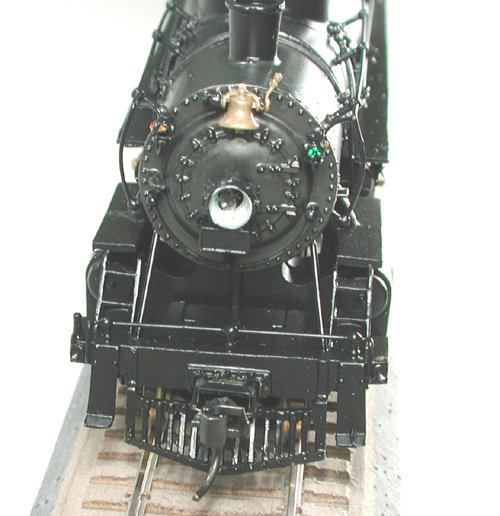

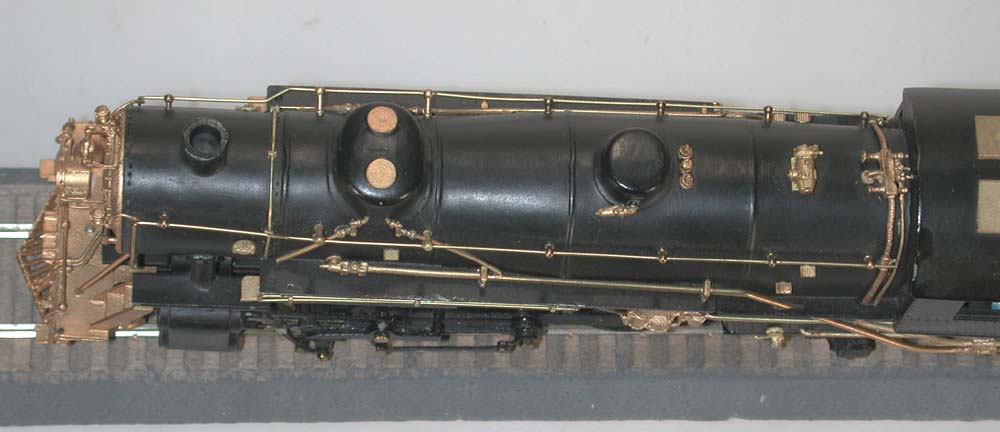

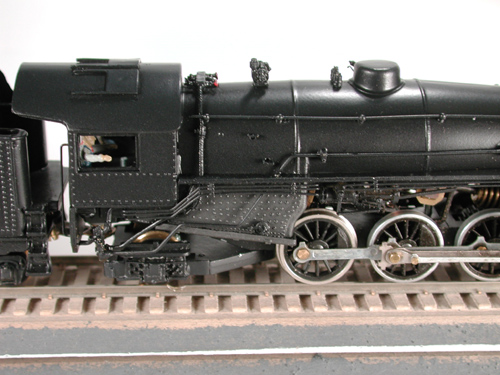

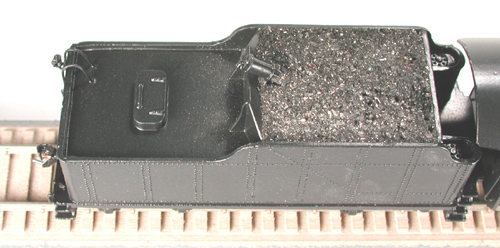

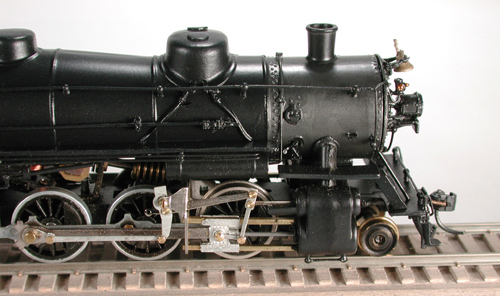

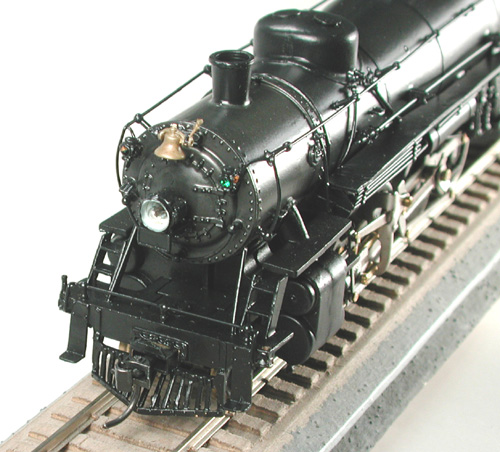

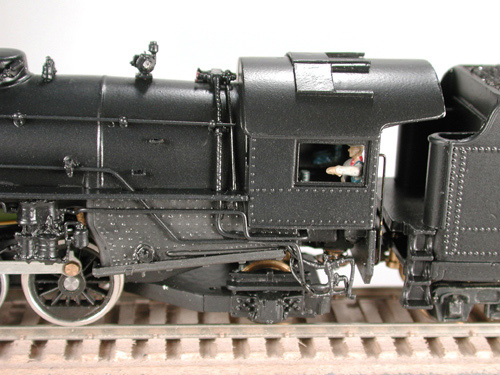

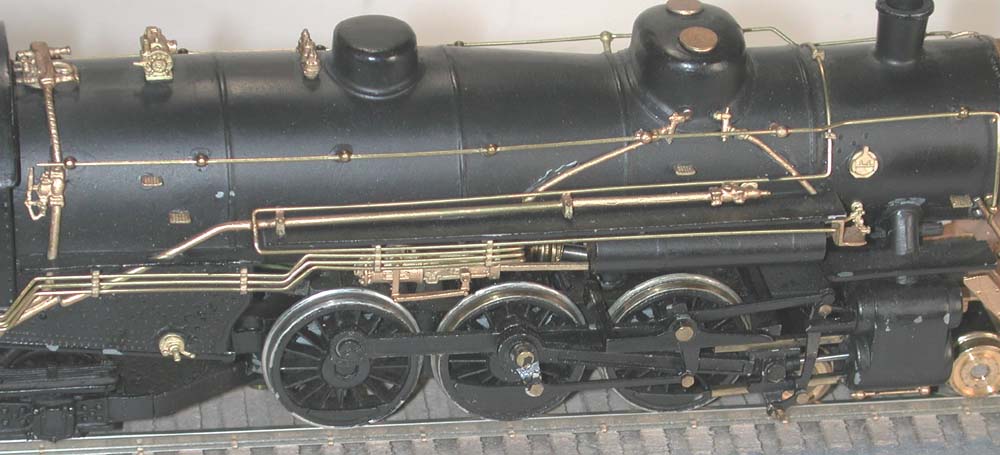

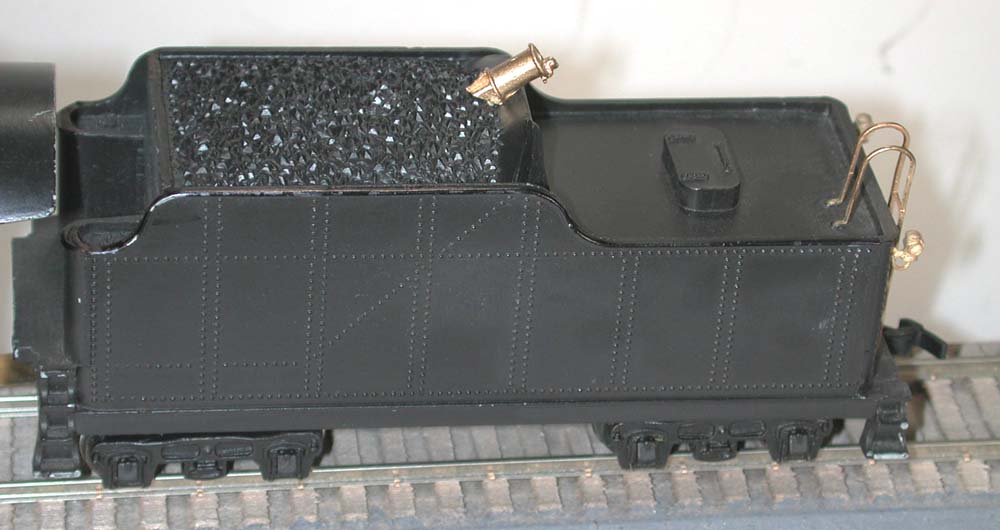

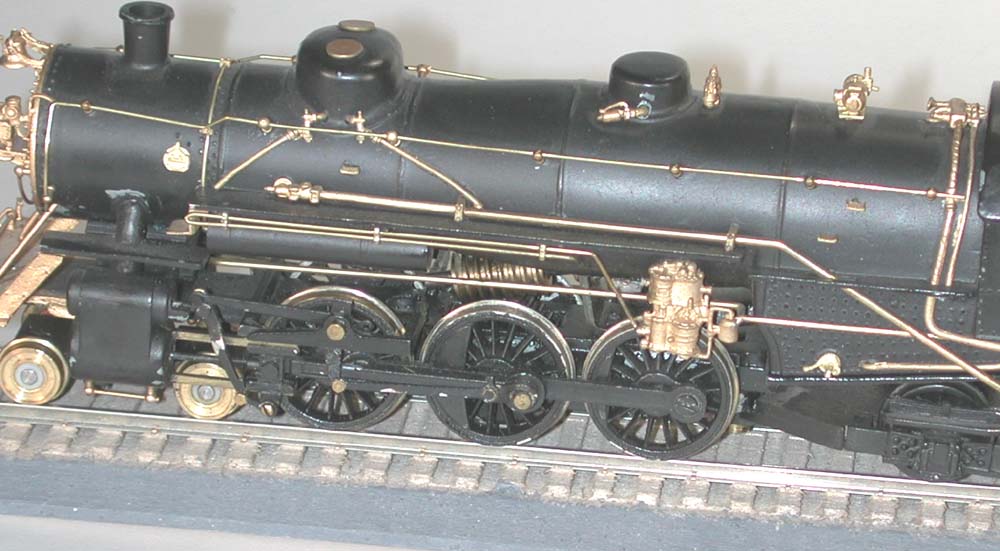

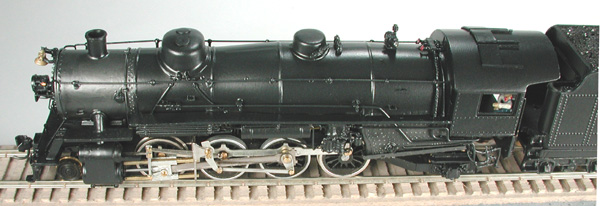

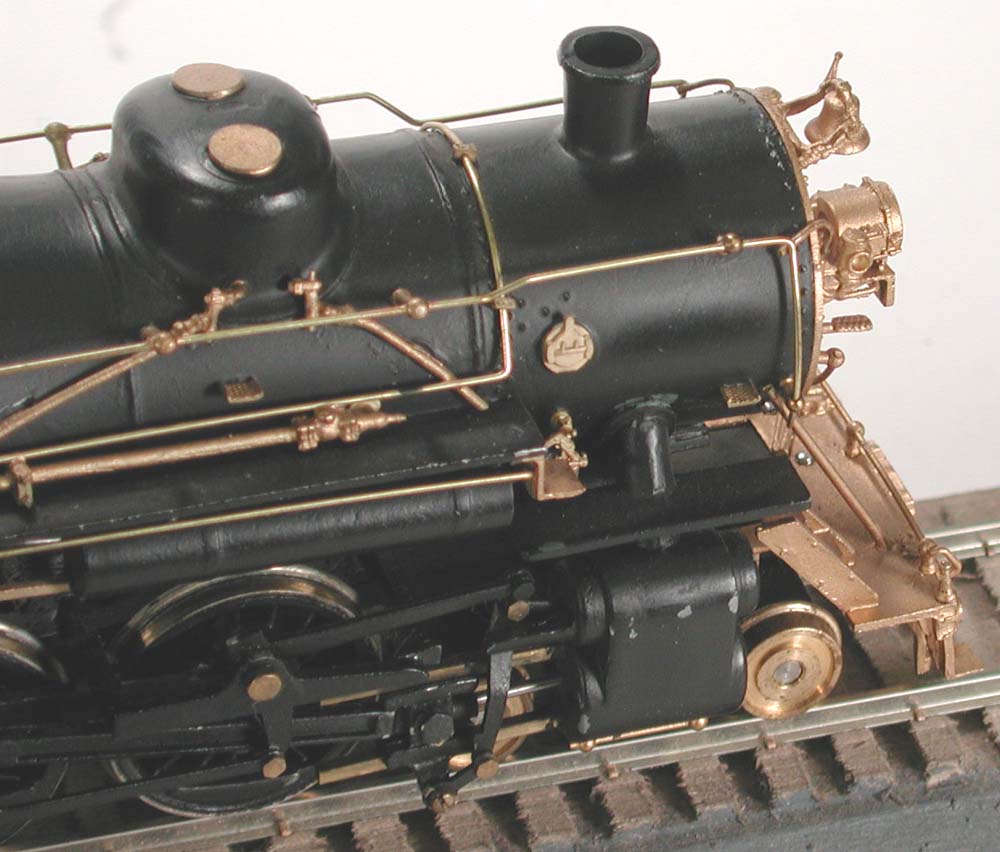

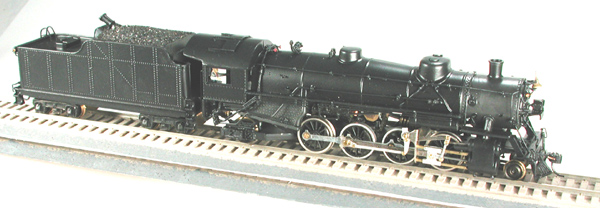

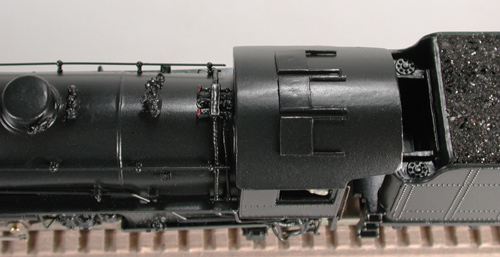

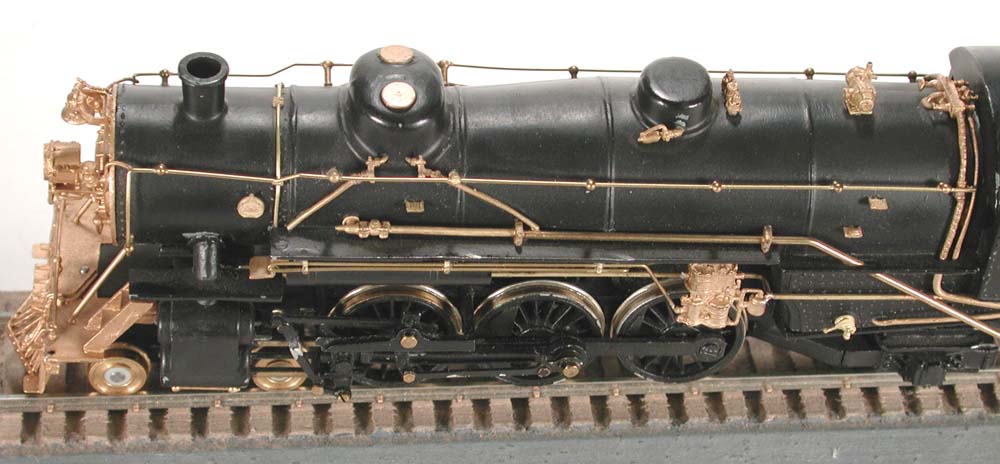

Brunswick Green Model w/Brass Super Detail Kit Installed
Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6
Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 12
Photo 13

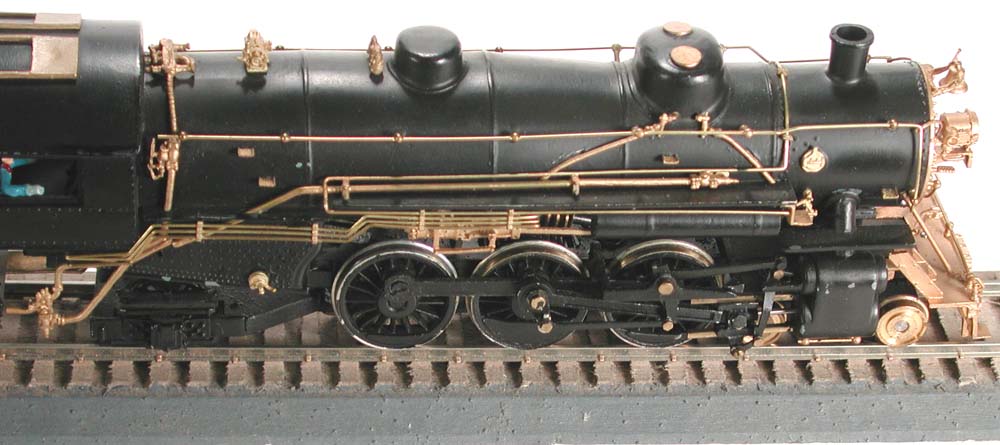

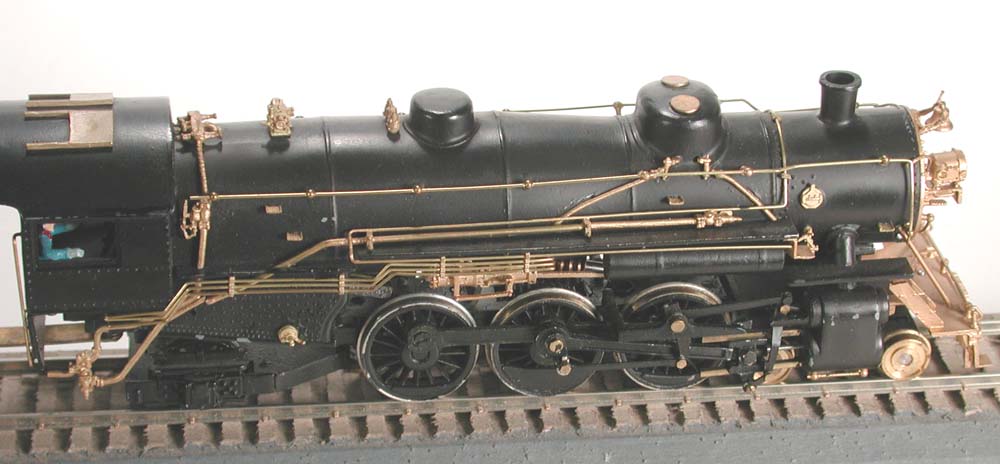

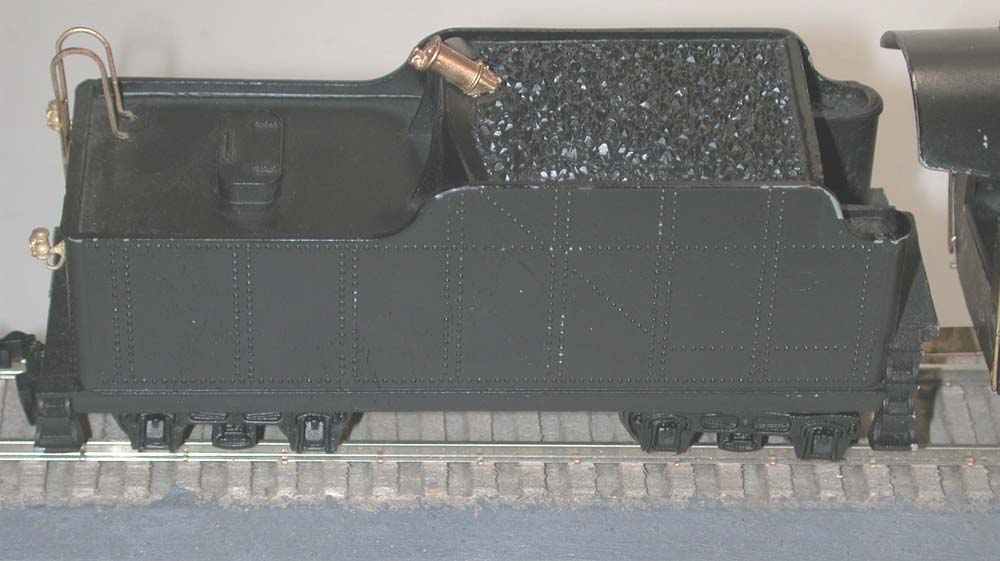

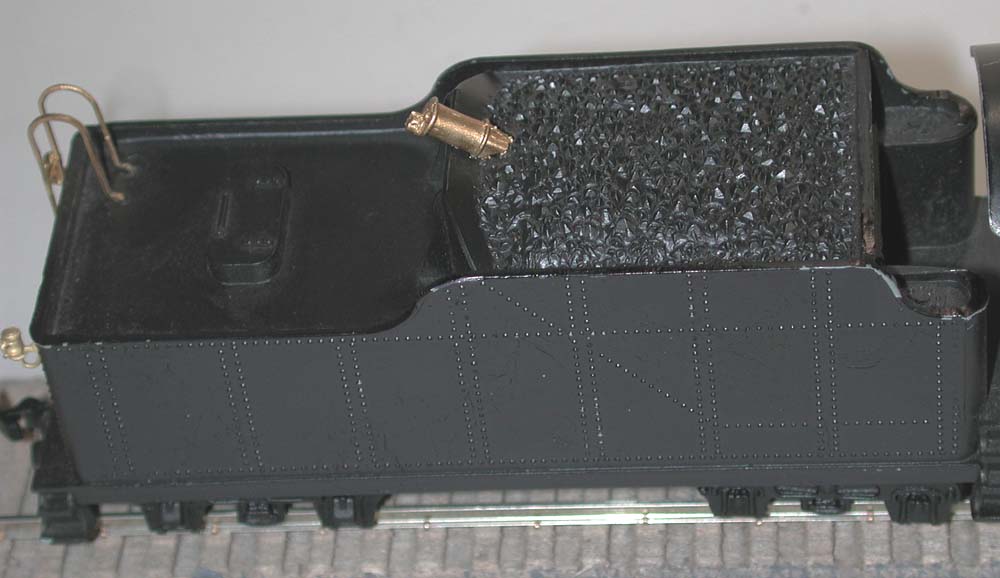

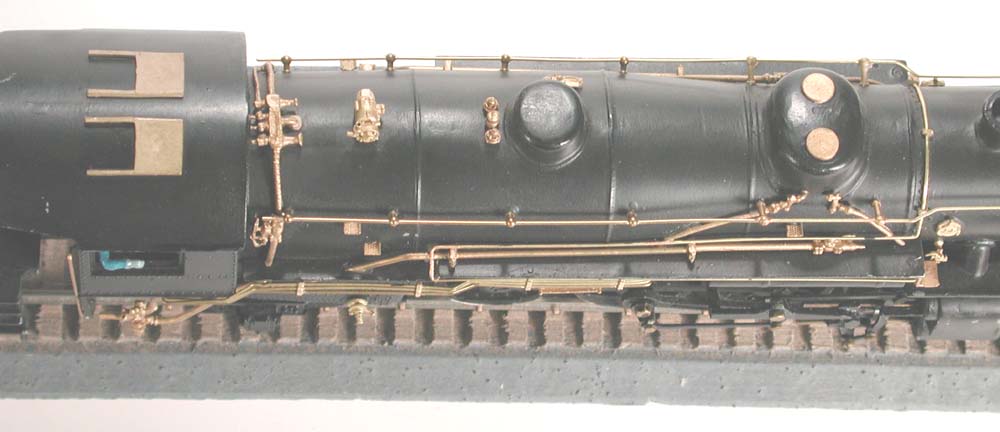

Super Detailed Locomotive and Tender Built and Painted by Tony Wasilewski
Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6
Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12
Photo 13 Photo 14 Photo 15 Photo 16
