Bowser - HO - Steam Loco Kits
NYC K-11 Pacific 4-6-2



Complete Kit and Accessories:  The locomotive and tender complete kit has all of the parts to build a working model. You may wish to add your own details or purchase our "Super Detail Kit". In addition we have assembled valve gear available as optional equipment to compliment your kit-building needs.

Part #DescriptionPrice

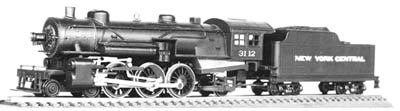

1-100200  NYC K-11, Pacific with Tender Kit * n.a.

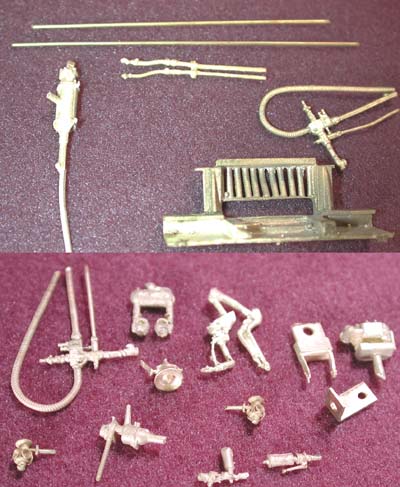

1-100210  K11 Super Detail Kit * n.a.
1-100215   Spare Rivet Kit, K2015 * n.a.
1-500205   Assembled K-11 Valve Gear * n.a.
1-91039   Headlite Bulb * n.a.
1-100416  Smoke Unit, M-1, M-1a, N2, Northern, USRA Mountain * n.a.

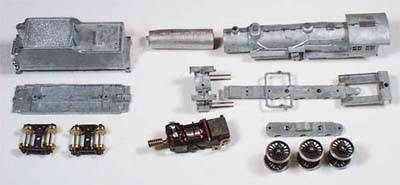

Kit Components and Replacement Parts:  The following parts are listed in order to identify parts in your kit or to replace parts that have been lost, damaged or simply worn out.  This is not a complete list of all of the individual parts available for this model - please call Bowser with your specific requirements if you cannot find the parts you need.  You may also use our on-line catalog to find parts by description.  Please note that part numbers with a price of "Call Us" may be part of an assembly and may not be available as a separate purchase item.

Part #DescriptionPrice

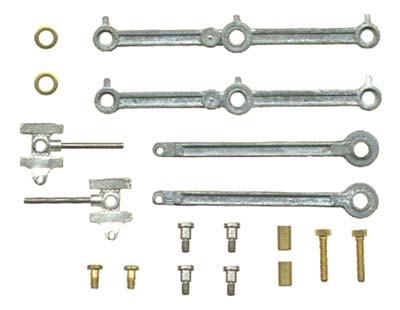

1-100201  Side Rod Kit, K2001 (included in K-11 Kit) * n.a.
1-100202   Worm Mount Kit, K2002 (included in K-11 Kit) * n.a.

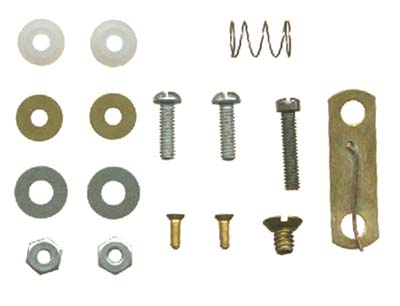

1-100203  Miscellaneous Kit, K2003 (included in K-11 Kit) * n.a.

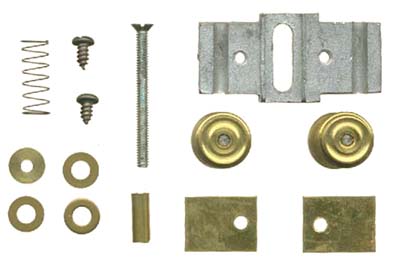

1-100204  Pony Truck Kit, K2004 (included in K-11 Kit) * n.a.

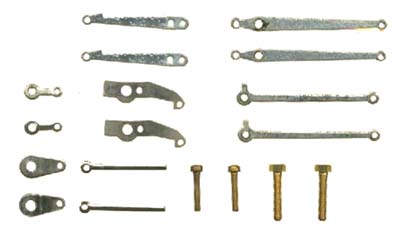

1-100205  Valve Gear Kit, K-11, K2005 (included in K-11 Kit) * n.a.

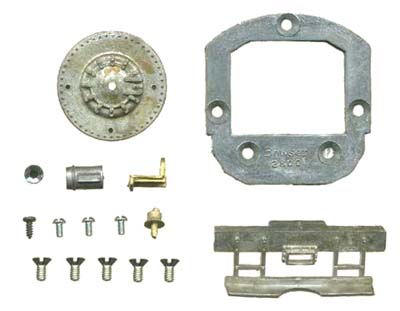

1-100206  Castings Kit, K-11, K2006 (included in K-11 Kit) * n.a.

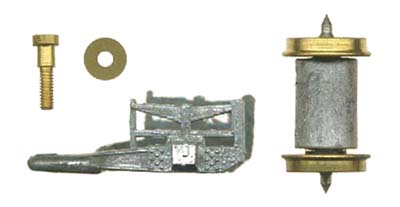

1-100207  Trailing Truck Kit, K2007 (included in K-11 Kit) * n.a.
1-100208  Frame, Drivers, Cylinders, K2008 (included in K-11 Kit) * n.a.

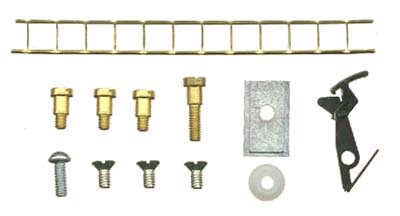

1-100209  Tender Parts Kit (included in K-11 Kit) * n.a.
1-100219   K-11 Pacific Mechanism Kit (included in Kit) * n.a.
1-100220  K-11 Instructions (included in Kit) * n.a.
1-100221   NYC K-11 Pacific Locomotive Only (included in Kit) * n.a.

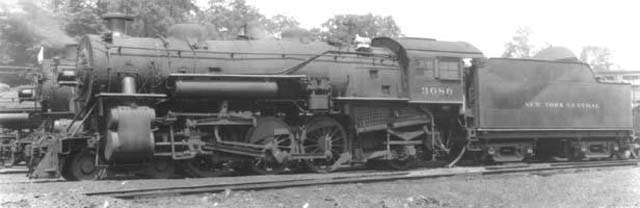

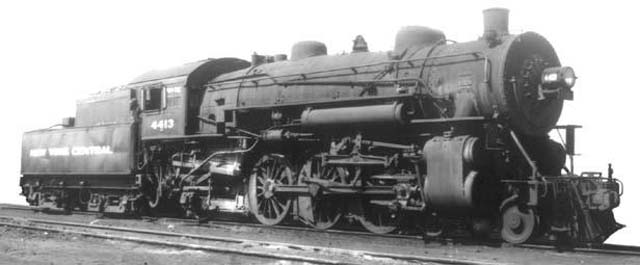

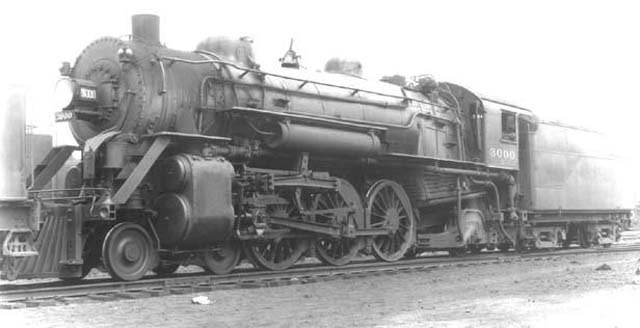

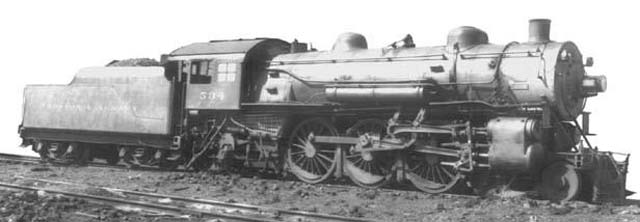

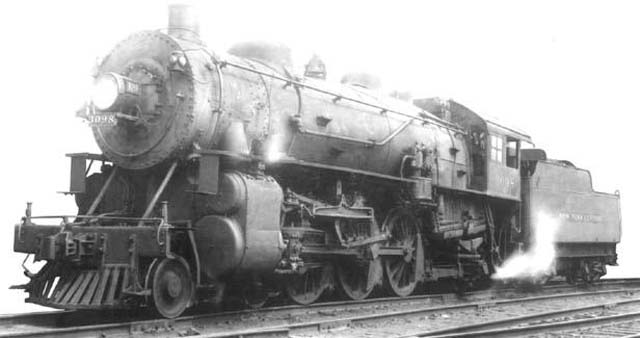

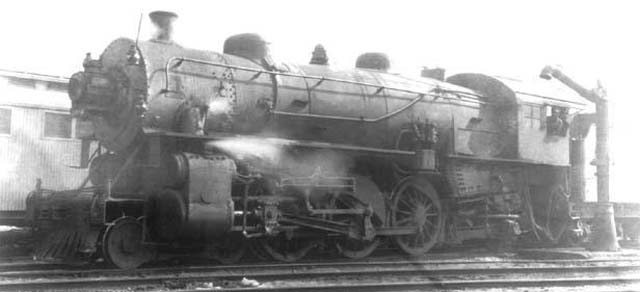

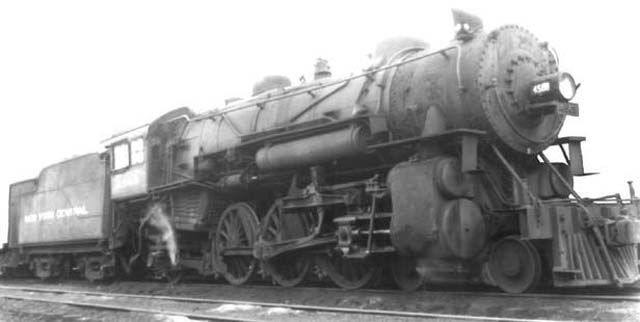

  Prototype
  Specifications
  Model
  Specifications
  Builder ALCO
  Cylinders 26" x 26"
  Steam Pressure 180 lbs.
  Tractive force 38,970 lbs.
  Weight of engine in working order 272,000 lbs.
  NYC Loco Numbers 4570 - 4599
  Length with Tender 10-7/8"
  Height 2-1/2"
  Weight 1lb 13oz.
  Minimum radius 18"
  Power Bowser DC-71 motor
  Drivers 69"

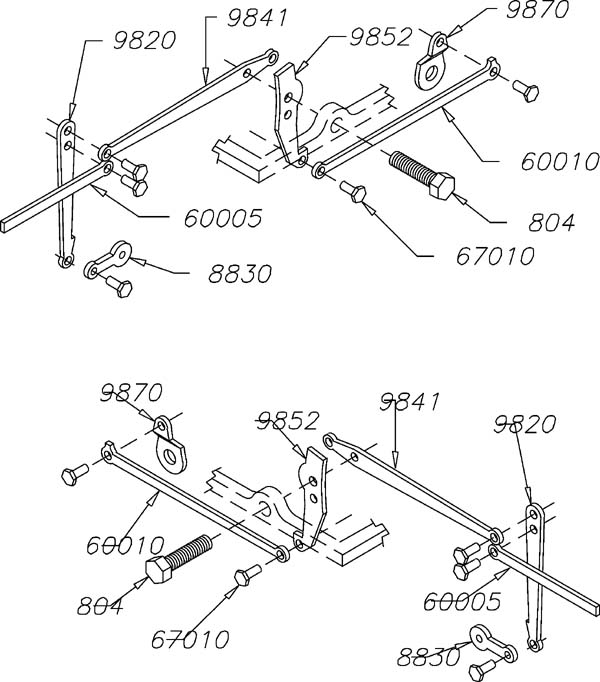

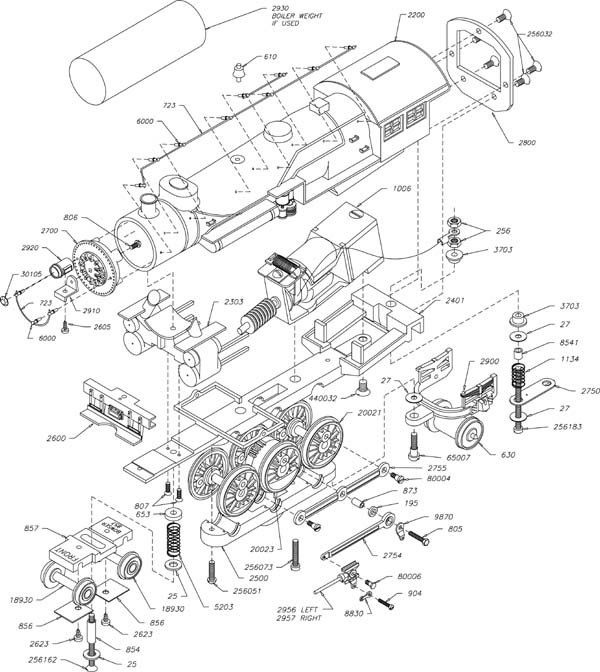

Assembly- Exploded View Drawings
(click on any image to enlarge)
Boiler & Mechanism Valve Gear
